• Demo Image

MTP/MPO Patch Cable, 8 Fiber, 40GbE, 40GBASE-SR4, OM3 Plenum-Rated - Aqua,

  • Precision molded MT ferrule, compatible for MTP/MPO standard
  • IEC 61754-7, Telcordia GR-1435-CORE Compliant
  • High precision guide pins for exact alignment
  • OM3 rated 50/125 Multimode
  • Supports to 40GbE speeds


MTP/MPO to MTP/MPO fiber patch cables are designed for high-density fiber patching in data centers. The MTP/MPO connector is approximately the same size of a SC connector but since it can accommodate 8 fibers, it provides up to 8 times the density, thereby offering savings in circuit card and rack space. This series cables are manufactured using laser-optimized, 50/125, OM3 multimode cable, and support speeds up to 40GbE. MPO/MTP OM3-rated for 10Gb Ethernet applications and can support speeds up to 40GbE. It also supports 40GBASE-SR4 and 100GBASE-SR10 in applicable parallel optics networks. Patch cable meets the most current industry standards, including IEEE 802.3ba and TIA LOMMF. The MPO connector offers up to 12 times the density of standard connectors,providing significant space and cost savings. MPO patch cord utilize precision molded MT ferrules, with metal guide pins and precise housing dimensions to ensure fiber alignment when mating.


  • MTP / MPO Push-Pull Connectors for Quick Fiber Optic connections
  • Push/Pull tab connectors offer maximum accessibility in high density installations; install / remove with one hand
  • 24 times the density of SC style connectors
  • High Density design cuts down on installation costs
  • 50/125 OM3 Rated Multimode Fiber, 850nm
  • Plenum rated jacket
  • Each cable 100% tested for low insertion loss and back reflection
  • Test data supplied with each cable
  • Custom lengths available

Package Includes

MTP / MPO Patch Cable, 8 Fiber, 100GbE Aqua OM3 Plenum


● MMF (50 / 125um), OM3
● 8 high density fiber cores
● Insertion loss: <0.7 dB (<0.5dB Optional)
● Return loss:> 25dB
● Insertion and extraction test: 500 times <0.5 dB
● Operation: temperature: -40 ℃ ~ + 80

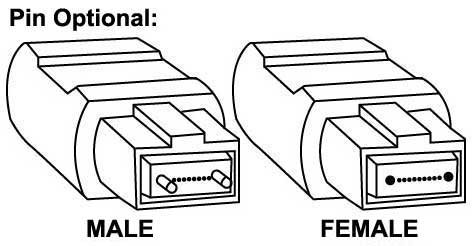

● Optional pin: Default FEMALE

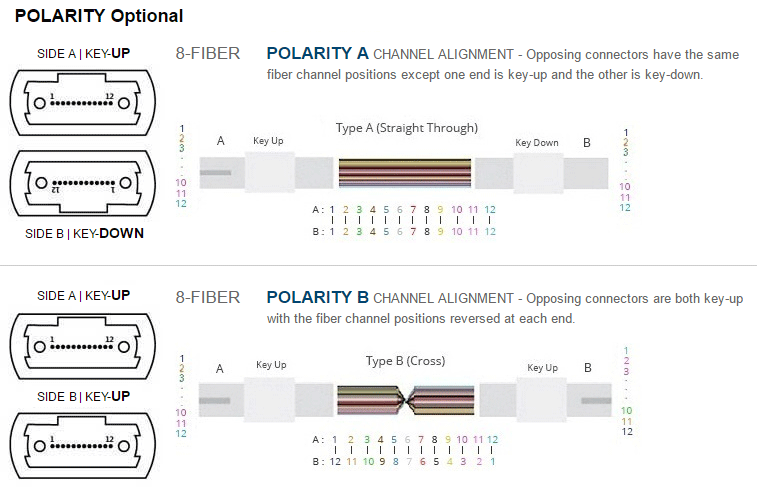

Polarity Options
